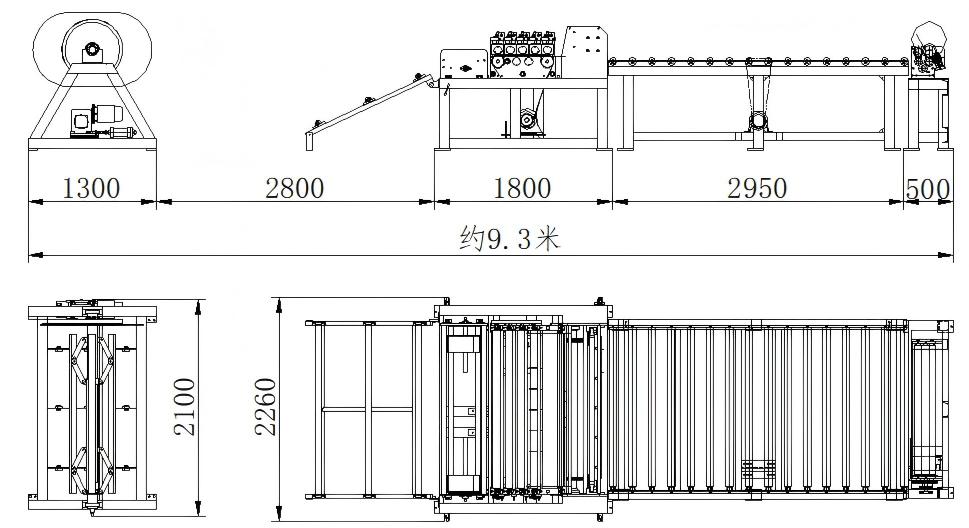

This automatic tube duct machine is a high-performance production line custom-built for modern HVAC duct manufacturing and industrial duct processing. The equipment integrates coil decoiling, leveling, precise cutting, efficient conveying, and versatile surface embossing & round forming into a seamless workflow. With a compact total length of approx. 9.5 meters, it utilizes advanced hydraulic shearing and pneumatic tensioning systems to guarantee excellent processing precision and high output efficiency during long-term, heavy-duty industrial operations.

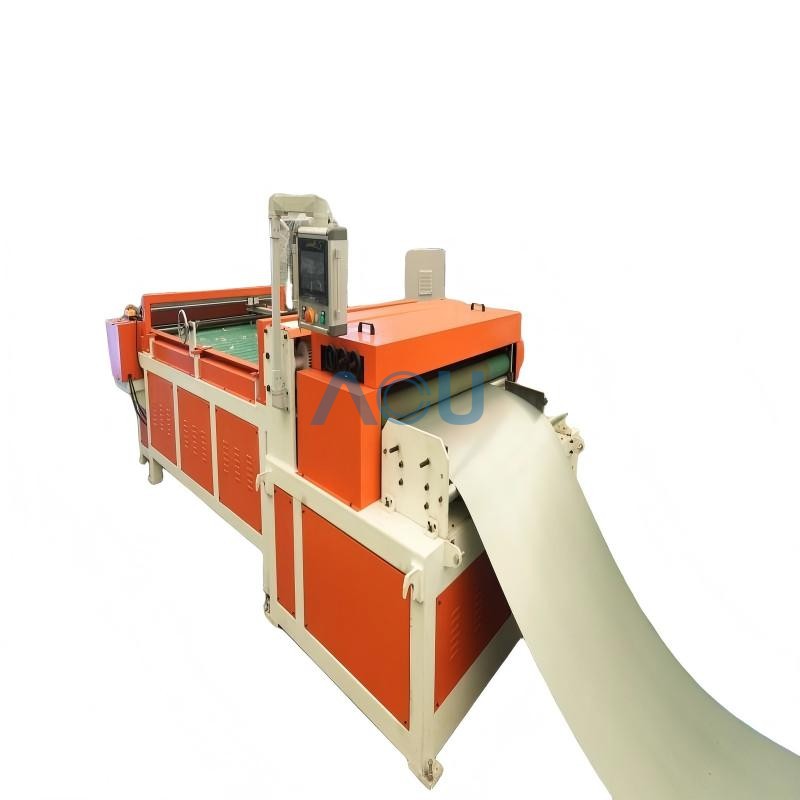

Industrial Automatic Tube Duct Forming Machine
Why Choose Us? Upgrade Your Production Today!
Are you still struggling with high labor costs, slow production speeds, and scratched steel sheets? It’s time to upgrade! This machine offers the perfect solution to maximize your factory's output while minimizing waste and labor dependencies. Contact us today to get a quote and take your manufacturing efficiency to the next level!
Product Features
Technical Parameters For Tube Machine
Process Flow
De-coiling→Leveling→Cutting→Conveying→Forming(Embossed , round and rub)
Technical Parameters
High load-capacity and stable tensioning design ensure smooth and steady material feeding, laying a solid foundation for subsequent high-precision leveling and cutting.
| Item | Specification |
| Material | 0.25 mm Galvanized Steel |
| Coil Width | ≤ 1524 mm |
| Coil Inner Diameter | Φ508 mm |
| Coil Outer Diameter | ≤ 1200 mm |
| Coil Weight | ≤ 2 T |
| De-coiling Motor | 1.5 kW |
| De-coiling Belt | 2HB-3050 |
| Coil Stand Structure | Adjustable table core tensioning, pneumatic belt tensioning, with pneumatic material pressing |
Main Parameters of the Production Line
Each module coordinates seamlessly, combining with digital control to realize high-efficiency, low-error, and intelligent assembly-line production.
| Item | Specification |
| Leveling Roller | 9 rollers, φ80 × 1600, surface hard chrome plated |
| Shearing Method | Hydraulic |
| Production Line Speed | 15 m/min |
| Shearing Length | 300–1200 mm |
| Machined Board Length Tolerance | ±0.5 mm |
| Machined Board Diagonal Tolerance | ±0.8 mm |
| Transition Frame Length | 3 meters |
| Transition Roller | φ70, rubber-coated surface |
| Rolling Roller Diameter | φ76, surface hard chrome plated |
| Rolling Diameter | 102–355 mm |
| Rolling Method | Automatic adjustment of table tilt roller, base end embossed and circular ribs pressing |
| Working Height | 940 mm |
| Area | 9.5 m × 2.5 m |
| Equipment Weight | Approximately 5.5 tons |
FAQ
1. How does this machine improve factory efficiency?
It features a fully automated workflow that replaces manual feeding, measuring, cutting, and beading. One machine does the work of multiple operators, delivering standardized, high-quality pipes with less labor.
2. Is it easy for ordinary workers to operate?
Yes. With our intuitive smart touch control panel, operators only need to input the required length and quantity. Ordinary workers can operate it independently after just half a day of training.
3. What is the benefit of the rubber-coated transition rollers?
Pure metal rollers can easily scratch the rust-proof galvanized coating of the steel sheets. Our premium rubber coating gently protects the material, ensuring scratch-free, high-quality, and longer-lasting finished pipes.
4. Can it handle different material sizes?
Yes, it supports coil widths up to 1524mm and sheet thicknesses around 0.25mm. The automated tilt roller allows you to switch between pipe diameters (102-355mm) quickly and effortlessly.
5. Is the daily maintenance difficult?
No, it’s built for durability. All critical leveling and forming rollers are treated with hard chrome plating to resist wear and rust. You only need to check the hydraulic oil and lubricate bearings regularly.
