High-Efficiency Fully Automatic U-Shape Air Duct Line

High-Efficiency Fully Automatic U-Shape Air Duct Line

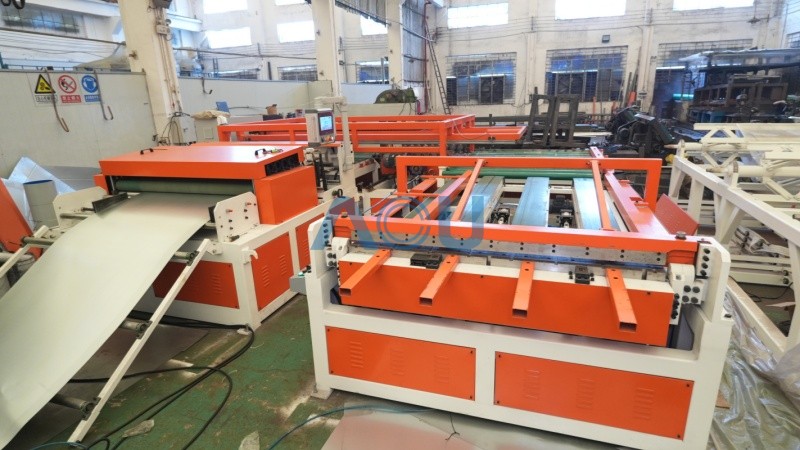

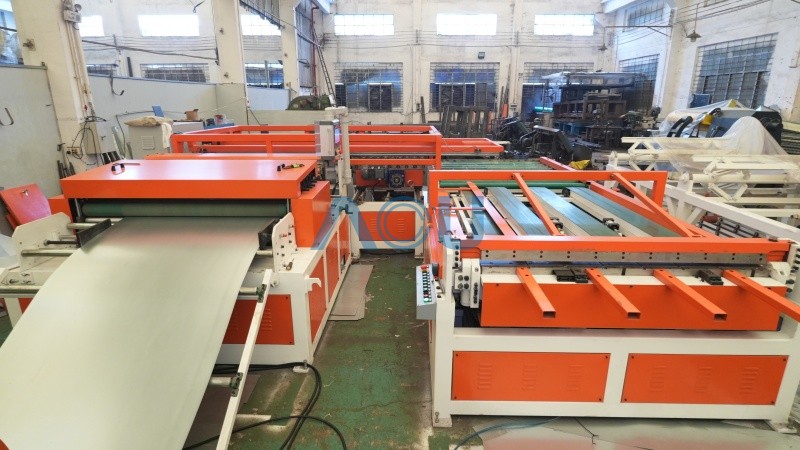

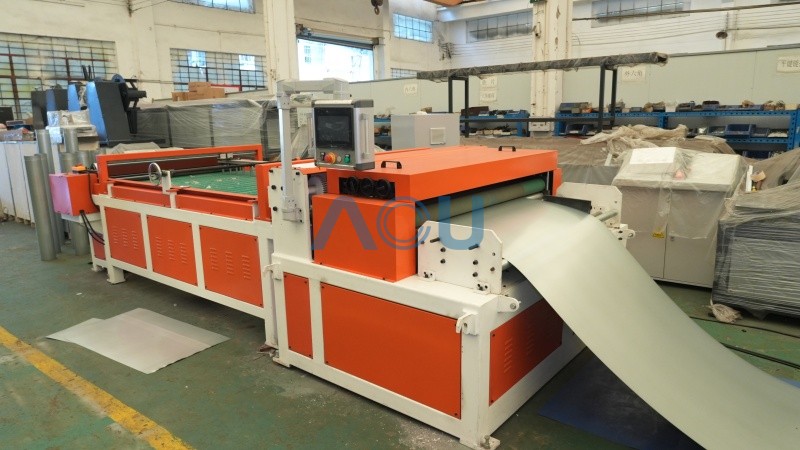

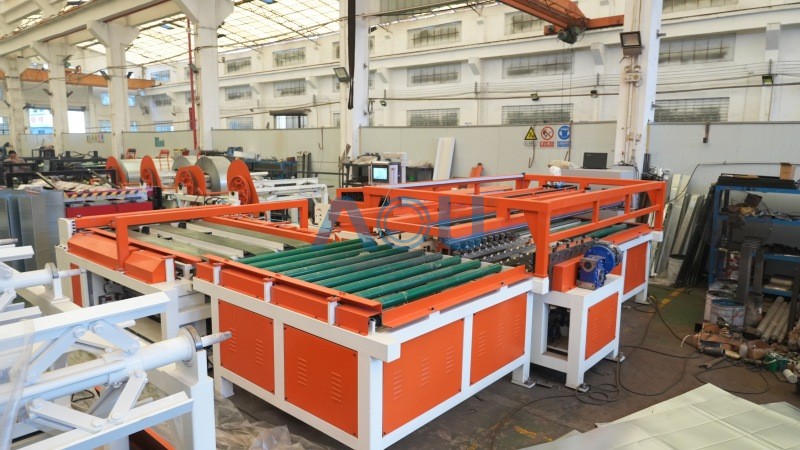

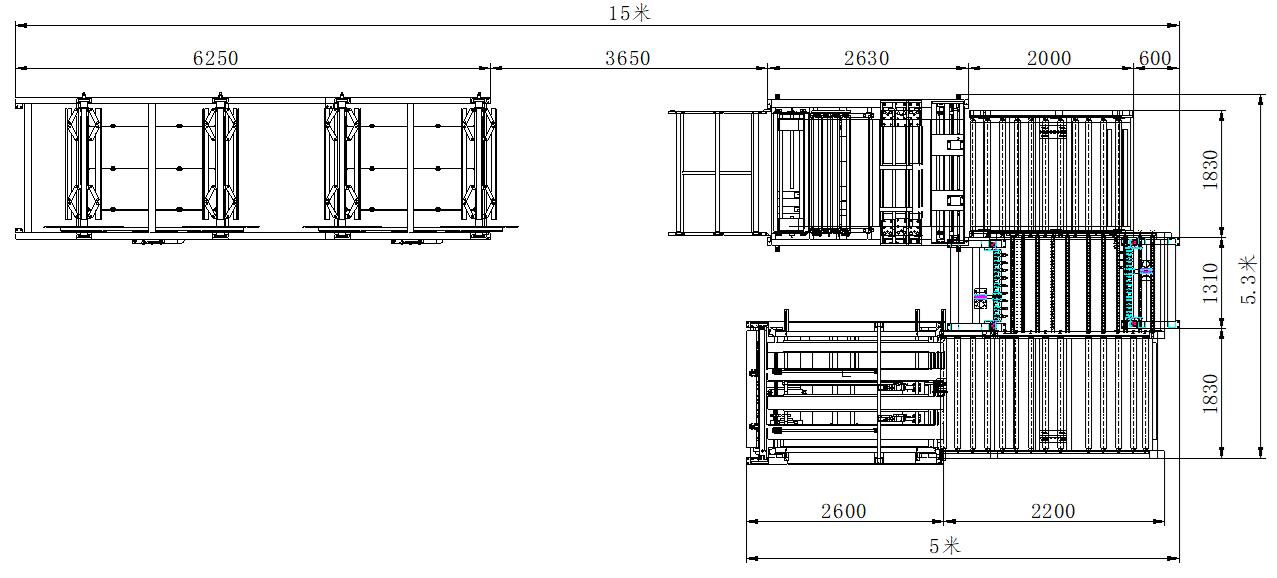

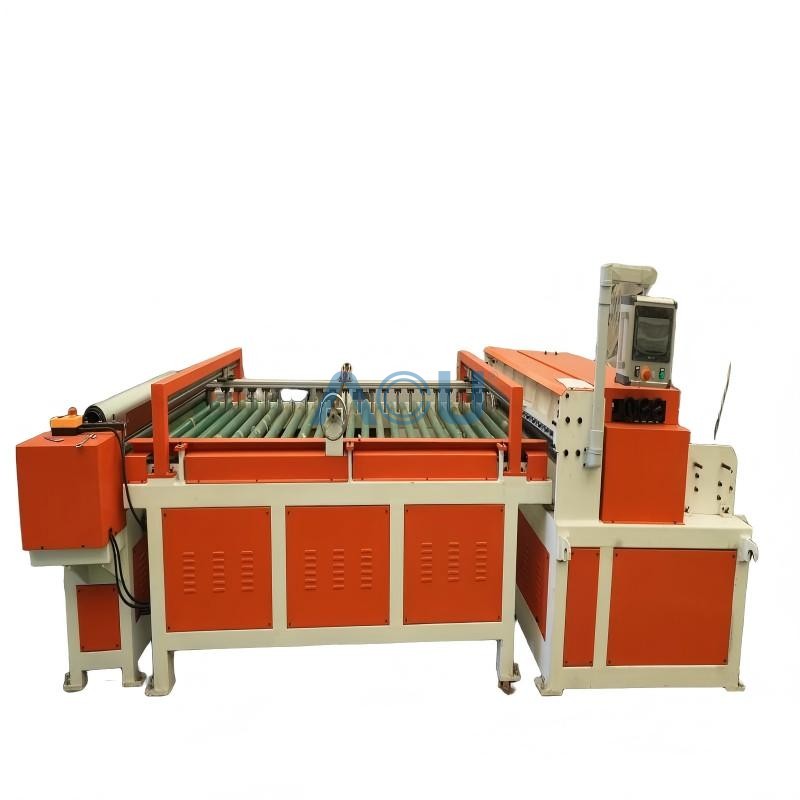

The CNC U-Shape Air Duct Production Line is a fully automated, space-saving solution designed for high-efficiency HVAC duct manufacturing. With a compact U-shaped rightward layout (15m X 5.3m), this line integrates de-coiling, leveling, circular rib pressing, precise corner/square cutting, material transferring, male/female snap button joint forming, and servo-controlled bending into a seamless, synchronized workflow. Driven by an advanced computerized CNC system and a robust hydraulic/pneumatic infrastructure, it processes 0.35-0.55mm galvanized sheets at a swift operational speed of 15m / min with exceptional precision (±0.5mm length tolerance).

Product Features

• Optimal Space Utilization: Utilizing a mature U-shaped assembly line layout, it significantly saves factory floor space compared to a linear production line, and facilitates smoother material transport at turns.
• Bidirectional Adjustable Seaming: The seaming machine supports bidirectional opening adjustment, flexibly adapting to the processing of ducts of different widths, eliminating the hassle of repeatedly adjusting molds.
• High Precision, Low Loss: An 11-roll leveling machine ensures absolute flatness of the sheet metal; the combination of servo folding and CNC system locks the finished product error within ±0.5mm, resulting in not only high speed (15m/min) but also significantly reduced scrap rate.
• Heavy-Duty Reliable Structure: Supports coils weighing up to 7 tons, and the pneumatically assisted pressing structure prevents vibration and deviation of thin sheets during high-speed feeding.

Technical Parameters For U-Shape Air Duct Line

Process Flow

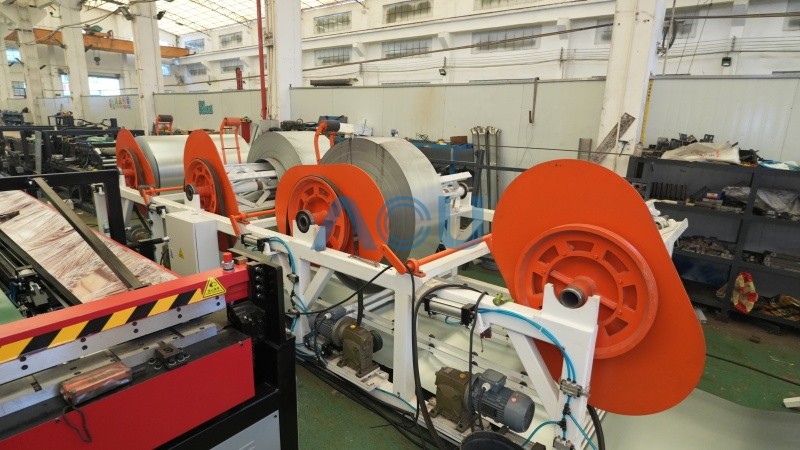

De-coiling→Leveling & Circular Rib Pressing→Corner Cutting →Cutting→Material Transfer→Forming Male/Female Snap Button Joints(Two Seaming Machines Adjustable in Opposite Directions)→Bending

Technical Parameters
