This stainless steel pipe welding machine is designed specifically for fluid applications, utilizing advanced technology to ensure high-quality welding and durability. Equipped with an internal weld flattening system and an argon-protected bright annealing process, it guarantees a smooth, silver-white weld that can withstand high fluid pressure.

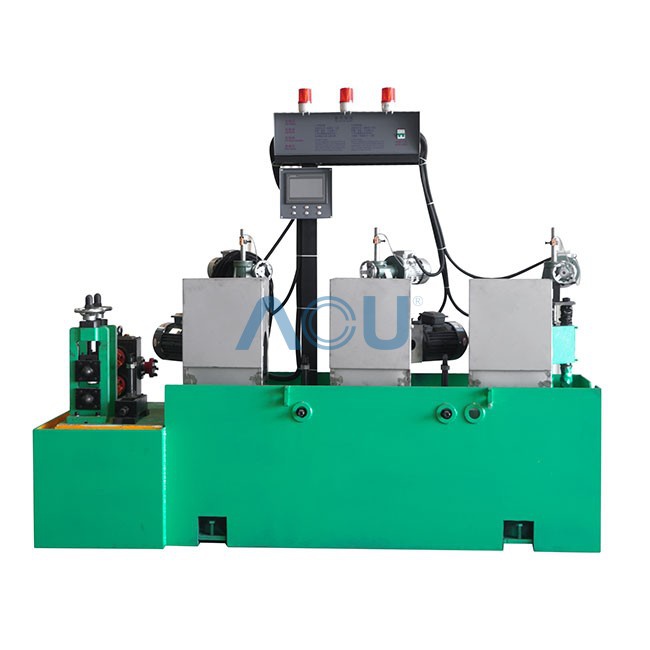

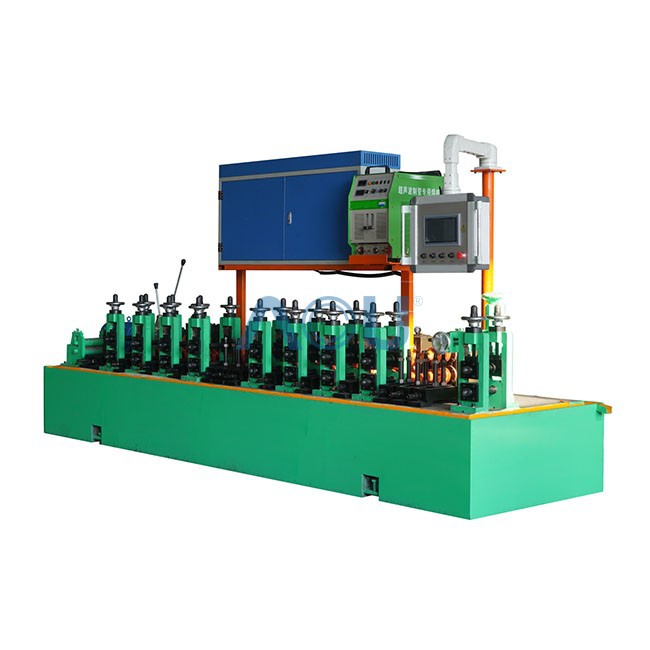

Pipe Welding Machine
Our pipe welding machine stands out in the industry with its cutting-edge features that enhance weld quality and pressure endurance. From automated internal weld flattening to thorough online inspection, this machine is built to deliver reliable, high-quality stainless steel pipes. It provides a smooth welding finish with optimal strength, making it suitable for a variety of fluid handling applications. This machine represents a significant advancement in pipe welding technology, optimized for efficiency, safety, and performance.
Technical Parameters
|
Model |
Horizontal Shaft Diameter (Φ) |
Vertical Diameter (Φ) |
Range (Φ) |
Thickness |
Motor Power |
Wheel Head |
Straightener |
Main Engine Size |
|
YJ40 |
40mm |
25mm |
9.5–50.8mm |
0.5–2.0mm |
7.5kw x 2 |
3 x 3kw |
2 sets |
7600 x 1150 |
|
YJ50 |
50mm |
30mm |
25.4–76.2mm |
0.5–3.0mm |
11kw x 2 |
3 x 3kw |
2 sets |
9000 x 1200 |
|
YJ60 |
60mm |
40mm |
50.8–114mm |
0.7–4.0mm |
15kw x 2 |
3 x 4kw |
2 sets |
11000 x 1500 |
|
YJ80 |
80mm |
50mm |
76–168mm |
1.0–5.0mm |
22kw x 2 |
3 x 5.5kw |
2 sets |
12900 x 2100 |
|
YJ100 |
100mm |
70mm |
114–219mm |
1.2–6.0mm |
30kw x 2 |
3 x 5.5kw |
2 sets |
14000 x 2300 |
Production Progress
