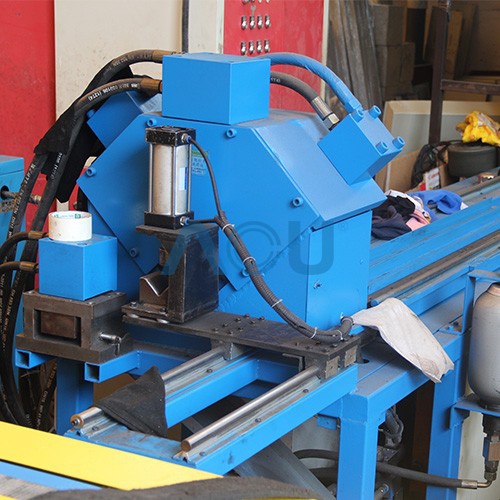

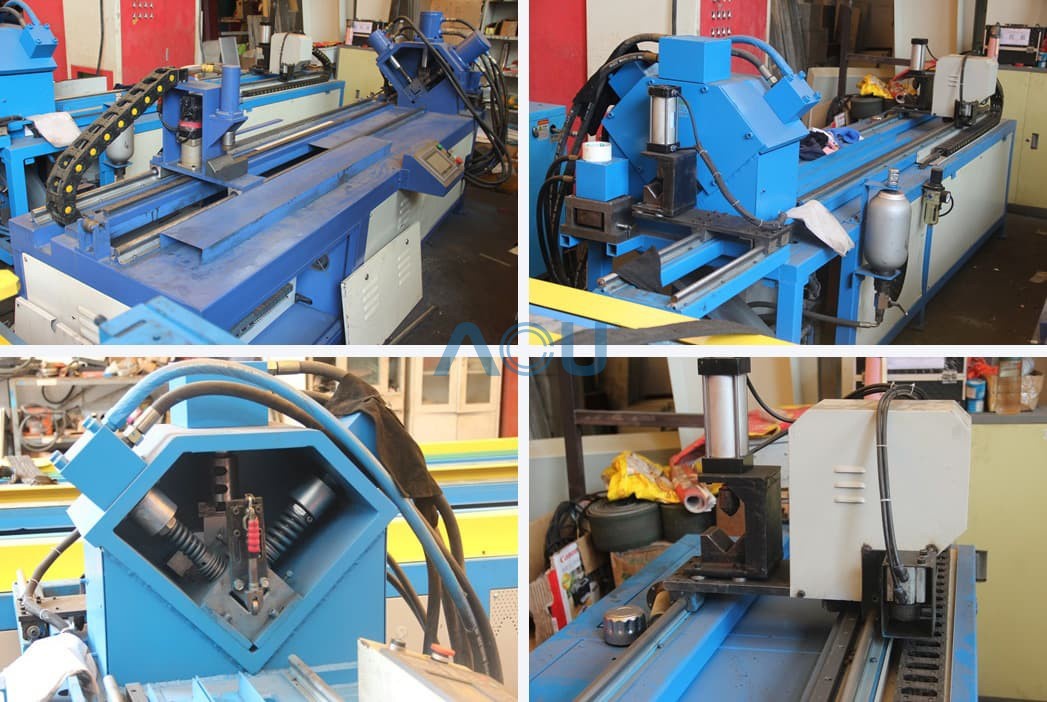

CNC Angle Iron Flange Punching Machine

CNC Angle Iron Flange Punching Machine

The CNC angle iron flange production line is a flexible and efficient solution for manufacturing angle steel flanges used in duct systems. This machine supports multiple models to accommodate various duct shapes and designs. Rolling wheels can be customized and adjusted based on customer requirements, providing exceptional versatility.

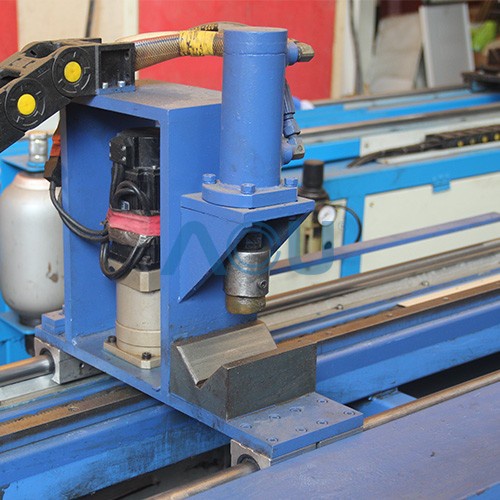

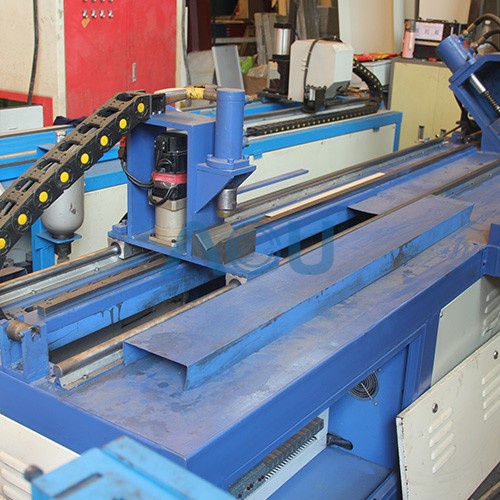

The angle iron flange punching machine is an advanced automated solution specifically developed for processing angle iron flanges in air duct systems. It integrates five core components: a feeding mechanism, main processing unit, discharge section, hydraulic system, and electrical control system. By leveraging automated operations and precise numerical control technology, this equipment enhances production efficiency while effectively reducing manual labor requirements. With high precision, speed, and automation, it delivers outstanding performance for industrial applications.

Performance Features

· Equipped with a servo motor control system, the machine ensures precise and accurate feeding dimensions.

· Operators simply need to input the workpiece size and the number of holes to punch during programming, making the operation intuitive and user-friendly.

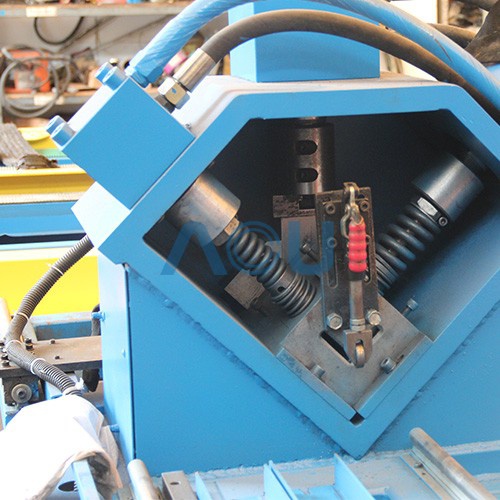

· The newly designed mold allows for quick and seamless angle steel transitions, while the punch is built for long-lasting durability.

Technical Parameter
